Sub系列
Discontinued models!
Do you want the kind of gut-wrenching bottom end makes home theatre truly come alive? By incorporating either of these units into your loudspeaker set-up you can extend your bass response to the lowest realms imaginable without compromising the unlimited dynamic range and natural, powerful low frequency reproduction that have always been a part of the Dynaudio experience.

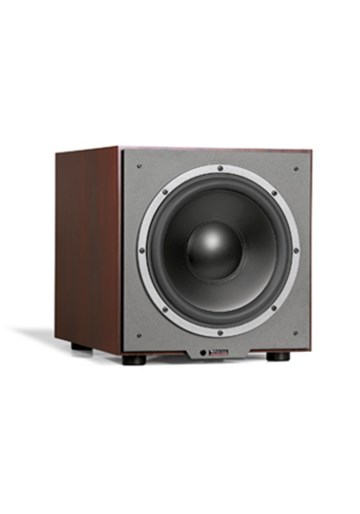

Sub 500
The Sub 500 is the perfect complement for ambitious multi-channel systems where deep and dynamic sub-bass is coveted and true Dynaudio sound quality is desired.?
表面工艺
A 12" woofer, featuring a die-cast aluminium frame, is integrated into a metal baffle in a sealed cabinet. Mounting the driver to the cabinet follows Dynaudio’+’s established design principle where a multi-layered sandwich construction is employed: Fusing the thick, stiff metal baffle to the MDF enclosure is a sheet of special dampening material.
This construction effectively eliminates any unwanted resonance and serves as the perfect foundation to optimize the fast and powerful transient signals from the driver.
It is powered by a 250 Watt amplifier utilizing the innovative Dynaudio CEC (Cone Excursion Control) technology, and features full remote control operation of all adjustments: Selecting level, phase, cross-over frequency, extended bass mode, and the four individual memory presets.
Its back panel is outfitted with both RCA and XLR inputs and outputs, the master/slave switch, as well as the memory protect switch.
The subwoofer driver may be concealed from view by the elegantly sculpted removable black fabric grill, which is itself attached to the baffle via concealed magnets.?
Technical Specifications
Frequency Response:
18 – 250 Hz (± 3 dB)
Amplifier Power (min.):
250 W
Low-Pass Filter:
Flat / 60 / 80 / 100 Hz
Phase adjustment:
0° / 90° / 180° / 270°
Input/Output:
RCA / RCA / XLR (balanced)
Box Principle:
Sealed
Weight:
30.6 kg
Dimensions (W x H x D):
360 x 378 x 568 mm
14.2 x 14.9 x 22.4"

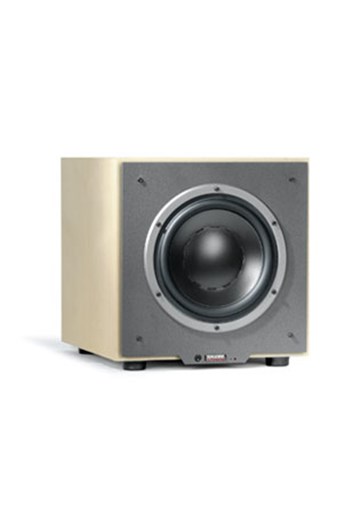

Sub 300
Designed to perfectly complement high-performance multi-channel setups in smaller to medium sized rooms, the Sub 300 brings true Dynaudio sound quality and real deep bass augmentation to any audio-video system in a relatively compact and most convenient to use package. ?
表面工艺
The Sub 300 utilizes a high-tech 10" woofer with a pure aluminium voice coils and a powerful magnet system.
It is powered by a 250 Watt amplifier featuring the Dynaudio CEC circuit, and is integrated into the characteristic metal baffle in a fairly compact cabinet fitted with a downward-firing port to deliver even deeper bass extension. The airflow-optimized port was specifically designed for noise reduction by minimizing air turbulence.
Dynaudio also provided the Sub 300 with the full feature set of remote control functionality with all adjustments for selecting level, phase, cross-over frequency, or extended bass mode, and the four individual subwoofer setting memory presets.
The back panel contains RCA and XLR inputs and outputs, the master/slave switch, and the memory protect switch as found on the Sub 500 model.?
Technical Specifications
Frequency Response:
25 – 250 Hz (± 3 dB)
Amplifier Power (min.):
200 W
Low-Pass Filter:
Flat / 60 / 80 / 100 Hz
Phase adjustment:
0° / 90° / 180° / 270°
Input/Output:
RCA / RCA / XLR (balanced)
Box Principle:
Ported
Weight:
19.1 kg
Dimensions (W x H x D):
320 x 338 x 466 mm
12.6 x 13.3 x 18.3"

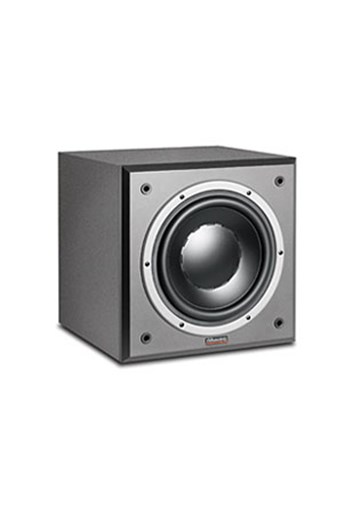

Sub 250 SAT
The Sub 250 SAT is a powered subwoofer with extremely flexible adjustment capabilities.?
表面工艺
The variable highpass-filter can be set to Flat, 60 Hz or 80 Hz and assures a perfectly matched harmonic response to the 42 SAT.
Due to its slight dimensions, the Sub 250 SAT can easily be positioned in any room, yet is still equipped with a 24 cm (9.5 inch) diameter, one-piece MSP (Magnesium Silicate Polymer) woofer powered by a 200 Watt integrated amplifier. Phase and low-pass filters can be adjusted at the back panel as well.
The result is a complete, balanced, dynamic, and natural sounding system ideal for either stereo or surround sound. For the highest performance, even at the lowest frequency registers, and a perfectly balanced bass response in any room, multiple Sub 250 SAT subwoofers can be daisy-chained via the advanced master/slave function.
The Sub 250 SAT subwoofer is exclusively available in the same Graphite lacquer finish as the Audience 42 SAT loudspeaker.?
Technical Specifications
Frequency Response:
29 – 250 Hz (± 3 dB)
Amplifier Power (min.):
200 W
High-Pass Filter:
Flat / 60 / 80 Hz
Low-Pass Filter:
Flat, 50 – 150 Hz
Phase adjustment:
0° or 180°
Input/Output:
2 x RCA / 2 x RCA
Box Principle:
Sealed
Weight:
10.0 kg
Dimensions (W x H x D):
289 x 294 x 318 mm
11.4 x 11.6 x 12.5"

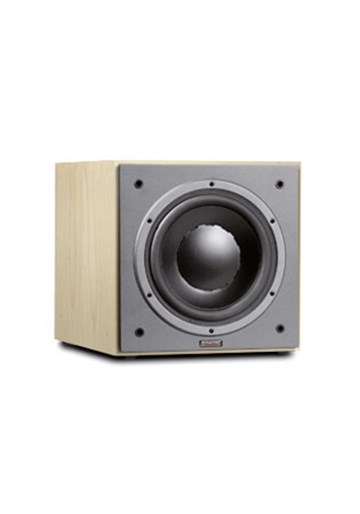

Sub 250
A subwoofer serves to provide more to a system than simply add deep bass.?
表面工艺
Incorporating a subwoofer to augment the low frequency performance of any stereo or multi-channel loudspeaker system offers an additional benefit: by reducing the strain on the speakers in terms of reproducing extreme bass information, the overall quality of midrange frequencies and the soundstage reproduction in general are greatly improved.
The High- Pass filter on the Sub 250 crossover enhances the general performance and imaging of the main speakers by reducing inter-modulation distortion. The SUB 250 model is the most compact sub-bass solution from Dynaudio.
Utilizing its powerful 10" woofer in a sealed enclosure that measures less than a cubic metric foot, the Sub 250 delivers a very high level of performance in multi-channel or sub/sat applications where only a modest sized subwoofer would fit.
Incorporating a 200 Watt amplifier, its back panel features a selectable gain setting, a variable Low-Pass Filter (50 Hz to 150 Hz), and a selectable phase switch (0o or 180o). There is one LFE RCA input and output, as well as an RCA SAT/SUB Input and an RCA SAT output.
The SAT High-Pass Filter is also selectable (Flat, 60 Hz, or 80 Hz). The band-pass filtered inputs and outputs make it perfectly suited as a mate for any of the Dynaudio compact monitors in a high quality sub/sat stereo system, where it would produce a purely audiophile grade performance.
Technical Specifications
Frequency Response:
29 – 250 Hz (± 3 dB)
Amplifier Power (min.):
200 W
High-Pass Filter:
Flat / 60 / 80 Hz
Low-Pass Filter:
Flat, 50 – 150 Hz
Phase adjustment:
0° or 180°
Input/Output:
2 x RCA / 2 x RCA
Box Principle:
Sealed
Weight:
10.0 kg
Dimensions (W x H x D):
289 x 294 x 318 mm
11.4 x 11.6 x 12.5"

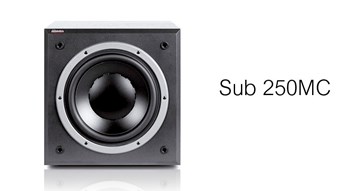

Sub 250MC
The first Dynaudio Multimedia models were showcased at the CES 2007: The compact MC 15 active loudspeaker and the matching Sub 250MC subwoofer.?
表面工艺
Incorporating a subwoofer to augment the low frequency performance of any desktop or multimedia loudspeaker system offers an additional benefit: by reducing the strain on the speakers in terms of reproducing extreme bass information, the overall quality of midrange frequencies and the soundstage reproduction in general are greatly improved.
The high-pass filter on the Sub 250MC crossover enhances the general performance and imaging of the main speakers by reducing inter-modulation distortion. The Sub 250MC model is the most compact sub-bass solution from Dynaudio.
Utilizing its powerful 10" woofer in a sealed enclosure that measures less than a cubic metric foot, the Sub 250MC delivers a very high level of performance in multi-channel or sub/sat multimedia applications where only a modest sized subwoofer would fit.
Incorporating a 140 Watt amplifier, its back panel features a selectable gain setting, a variable low-pass Filter (50 Hz to 150 Hz), and a selectable phase switch (0o or 180o). There is one LFE RCA input and output, as well as an RCA SAT/SUB Input and an RCA SAT output. ?
Technical Specifications
Frequency Response:
29 – 250 Hz (± 3 dB)
Amplifier Power (min.):
140 W
High-Pass Filter:
Flat / 60 / 80 Hz
Low-Pass Filter:
Flat, 50 – 150 Hz
Phase adjustment:
0° or 180°
Input/Output:
4 x RCA / 2 x RCA
Box Principle:
Sealed
Weight:
10 kg
Dimensions (W x H x D):
289 x 294 x 318 mm
