Discontinued models!

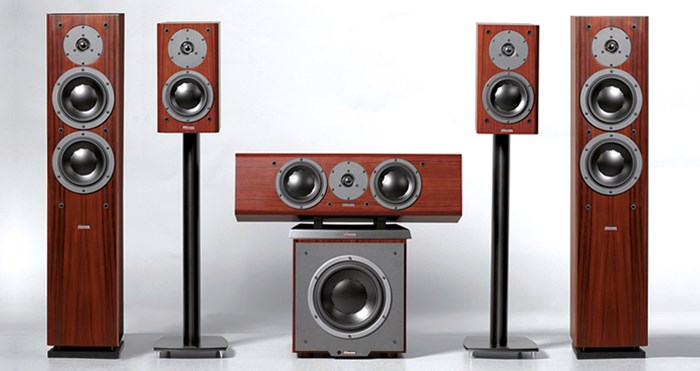

The Focus range is a more recent addition to the Dynaudio loudspeaker model line-up.
Despite their relatively recent introduction, these loudspeakers have already received numerous awards and tremendous praise from audio journalists and music lovers. The special Focus cabinet features a gentle taper towards the rear to effectively reduce internal standing waves. Combined with the very latest, powerful Esotec+ driver technology, the result is a lively, dynamic music reproduction.?

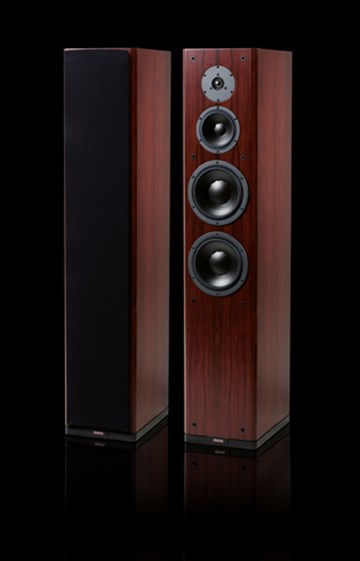

Focus 360
Energy, depth, substance: The Focus 360 reveals the full musical picture. From the finest nuance of a singing voice to the full dynamics of an orchestra – music becomes a tactile experience.
表面工艺
The impressive energy and dynamics are achieved by newly developed 20 cm woofers, arranged in a dual driver design. The large diaphragm surface and the immense inner volume of the cabinet allows authentic deep bass delivery and reproduction down to 31 Hz. Even the most energetic low frequency notes are reproduced in an absolutely precise and controlled manner, thanks to extraordinarily large voice coils with the magnet inside the coil.
The result is remarkable speed and accuracy in the lower registers. Voices and instruments are handled by a dedicated midrange driver. The separation of the midrange from the lower bass in the isolated cabinet chamber avoids influence and disturbance from the woofer section.
The Focus 360 exhibits precise staging and an absolutely pure sound reproduction at any volume, especially with voices and natural instruments. The Esotar2 soft dome tweeter is the ideal match for the powerful bass and midrange drivers, while the special coating of the fabric dome enables the smooth, natural high frequencies Dynaudio has become famous for – even when revving up the amp to maximum levels.?
Technical Specifications
Sensitivity (2.83 V/1 m):88 dB
IEC Long Term Power Handling:>300 W
Impedance:4 Ohms
Frequency Response:31 Hz - 25 kHz
Crossover Frequencies:400Hz / 2200 Hz
Weight:36,1 kg
Dimensions (W x H x D):248 x 1240 x 385 mm

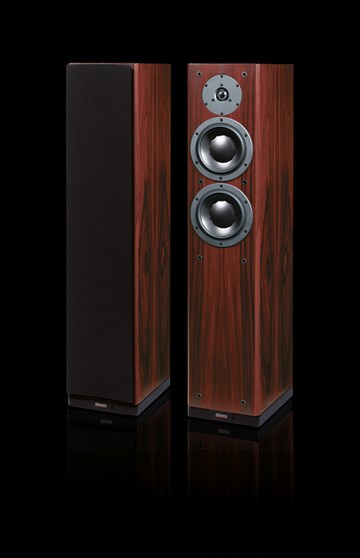

Focus 220 II
The Focus 220 II is a highly developed floor-standing loudspeaker embodying Dynaudio’s passion for music. ?
表面工艺
Like the predecessor Focus 220, this floorstanding loudspeaker relies on two Esotec+ mid/bass drivers with an advanced double magnet system. For the new 220 II version, the bass reflex port has been fine-tuned to achieve an even tighter, more precise bass performance.
The use of large diameter aluminium voice-coils increases thermal handling capabilities, allowing all drivers to operate within an ideal temperature range, even at high continuous power levels. The MSP cone is manufactured from Magnesium Silicate Polymer – a Dynaudio exclusive and essential to the unique sound quality.
Further enhancements in the Focus 220 II crossover ensure a very smooth overall frequency response and an ideal phase response. The incredibly detailed high frequency reproduction is guaranteed by the specially coated Esotec+ soft-dome tweeter. For the new Focus 220 II version, the tweeter’s performance has been improved further by fine-tuning the frequency range. Neodymium, one of the most efficient but also most expensive magnetic materials has been used. Combined with the extremely light aluminium voice coil, the high frequency reproduction is remarkably dynamic and clean, but as a result of the special fabric dome coating also extremely smooth and natural. This complete driver assembly is built into a rigid, die-cast aluminium basket. Even the tweeter is firmly secured to the cabinet by using a solid metal face-plate, so any resonance is eliminated.
Technical Specifications
Sensitivity (2.83 V/1 m):88 dB
IEC Long Term Power Handling:250 W
Impedance:4 Ohms
Frequency Response:32 Hz - 25 kHz
Crossover Frequencies:1800 Hz
Weight:18.7 kg
Dimensions (W x H x D):205 x 1240 x 385 mm

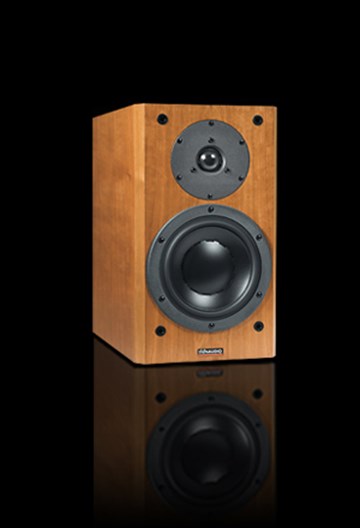

Focus 140
The Focus 140 embodies all of the virtues in Dynaudio’s long-standing tradition of high-performance compact loudspeakers: Highly evolved Dynaudio technology, meticulously selected components, painstakingly matched materials and carefully voiced sonics. Every technical detail is developed and manufactured exclusively by Dynaudio.?
表面工艺
One example is the sophisticated cross-over designed for the Focus 140, which unifies the speaker drivers to deliver a seamless and homogenous presentation. Air-coils wound with the purest copper, high-grade Solen capacitors and zero temperature drift ceramic resistors provide the absolute purity essential for natural music reproduction. To achieve a seamless transition between bass and treble, Dynaudio cross-overs always feature simple 1st order filters (6dB/octave). These networks deliver a superior transient response, which further improves dynamics with lively music recordings.
Passion for detail also leads to perfection in the all-new Esotec+ tweeter. The fine soft dome features a special coating to facilitate an extended high frequency response free of distortion. Suspended in ferro-fluid for controlled damping, an extremely light aluminium voice-coil drives the dome. In tandem with the incredibly powerful Neodym magnet, sound reproduction remains amazing and dynamic. The new Esotec+ technology lets you fully experience the unparalleled power this seemingly familiar technology is capable of.
Technical Specifications
Sensitivity (2.83 V/1 m):86 dB
IEC Long Term Power Handling:200 W
Impedance:4 Ohms
Frequency Response:41 Hz - 25 kHz
Crossover Frequency:2400 Hz
Weight:8,5 kg
Dimensions (W x H x D):203 x 350 x 295 mm

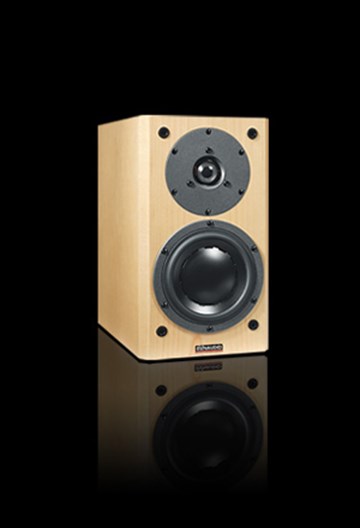

Focus 110
The basis of the Focus 110 is the extremely solid cabinet construction. The asymmetrical form of the cabinet takes shape with sidewalls that gently taper towards the back, contributing additional rigidity to the assembly. In principle, this further prevents unwanted resonance and its detrimental effects. The end result is pure and untainted sound reproduction free of coloration.?
表面工艺
The Esotec+ technology is also prominently featured in the smallest model of the Focus range. The integrated D 280 tweeter with its coated 28mm soft dome fascinates with its incredibly detailed resolution of the high frequencies – a level of performance for which Dynaudio has become renowned.
Another element typical of Dynaudio is the diffraction-optimized shape of the new Esotec+ mid/bass driver. Its cone’s characteristic curvature further aids imaging so that even at short listening distances or in a smaller room a realistic, true three-dimensional sound-stage can be enjoyed. In relation to the total cone surface area, the voice-coil is exceptionally large in diameter, allowing a most precise conversion of the amplifier’s signal to music. The result is uncompromised, direct music enjoyment.
The Focus 110’s balanced frequency response is not simply the result of the superior drivers utilized, but also a product of accurate fine-tuning of the crossover.?
Technical Specifications
Sensitivity (2.83 V/1 m):85 dB
IEC Long Term Power Handling:150 W
Impedance:4 Ohms
Frequency Response:45 Hz - 25 kHz
Crossover Frequency:1600 Hz
Weight:7,3 kg
Dimensions (W x H x D):173 x 305 x 285 mm

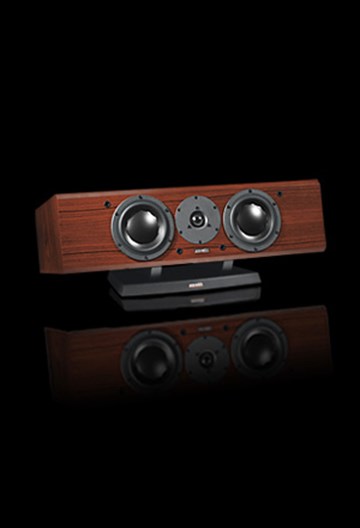

Focus 200 C
Only when the sonic balance of all speakers is the same, will there be a true room-filling audio experience. To achieve such an authentic sound balance, the driver technology used for the Focus 200 C Center channel loudspeaker is of the same very high standard as that employed in the Focus floor standing and stand-mount speakers.?
表面工艺
After all, such sophisticated technology for a center speaker is fully justified if one considers that more than 75 percent of the sound in a multi-channel production is directed to the center channel. Two matching 15 cm mid/bass drivers using Esotec+ technology are employed in the Focus 200 C. These use an optimized double-magnet system so that dynamic impulses can be reproduced precisely and undistorted, even at high volume levels. Impressive sound quality and high power handling capability are achieved through Dynaudio’s characteristically large lightweight aluminium voice-coils and the torsionally stiff, low turbulence die-cast aluminium speaker basket frames. A typical attribute of the MSP cone diaphragms is their freedom of coloration: This keeps voices realistic and open, criteria essential for a high quality center channel.
For the Focus 200 C center channel loudspeaker, Dynaudio’s renowned soft-dome tweeter, specially treated with proprietary ferro-fluid to ensure perfect dome behavior, is used for the high frequency reproduction. Both complex sound effects and fine details are easily reproduced yet fit the overall sound character perfectly. The magnetic shielding accommodates the center channel’s preferred positioning near the video display.?
Technical Specifications
Sensitivity (2.83 V/1 m):87 dB
IEC Long Term Power Handling:250 W
Impedance:4 Ohms
Frequency Response:38 Hz - 25 kHz
Crossover Frequency:1900 Hz
Weight:12,7 kg
Dimensions (W x H x D):640 x 173 x 285 mm

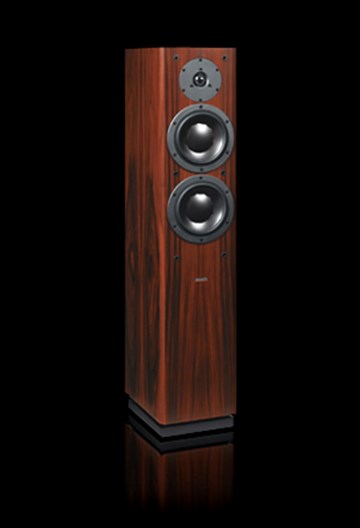

Focus 220
For a dynamic power delivery in the bass region, this slim floor-standing loudspeaker relies on two mid/bass drivers from the completely newly developed Esotec+ generation. By employing a double-magnet motor system with ultra-compressed Ferrite magnets, dramatic musical passages are reproduced without compromise. And with increased cone excursion, even the most powerful transients are delivered without compression.
表面工艺
The use of large diameter aluminium voice-coils has increased thermal handling capabilities tremendously, allowing all drivers to operate within an ideal temperature range, even at high continuous power levels and during powerful music transients. Another Dynaudio exclusive: The cone diaphragm with controlled rigidity is manufactured from Magnesium Silicate Polymer (MSP) – a material essential to the unique Dynaudio sound. This complete motor assembly is built into a torsionally rigid die-cast aluminium basket, which has been optimized to eliminate air turbulence and resonance and the adverse effects of such.
The extremely smooth and incredibly detailed high frequency reproduction characteristic of Dynaudio is guaranteed by the all-new T 380 soft-dome tweeter, which features the new Esotec+ technology. For the upper-range in the Focus 220, this called for the employment of Neodymium – one of the most efficient but also most expensive magnetic materials for loudspeaker construction. With the tweeter’s solid metal face-plate firmly attached to the cabinet by no less than six screws, any resonance is eliminated. Such a secure, neutral foundation is simply not possible by using light-weight plastic cabinets or loosely mounted drivers.?
Technical Specifications
Sensitivity (2.83 V/1 m):87 dB
IEC Long Term Power Handling:>250 W
Impedance:4 Ohms
Weight:18,7 kg
Dimensions (W x H x D):205 x 980 x 295 mm
